🚀 Unlock Pro-Level Power & Speed with MACHINIST X99 – Your Server’s Secret Weapon!

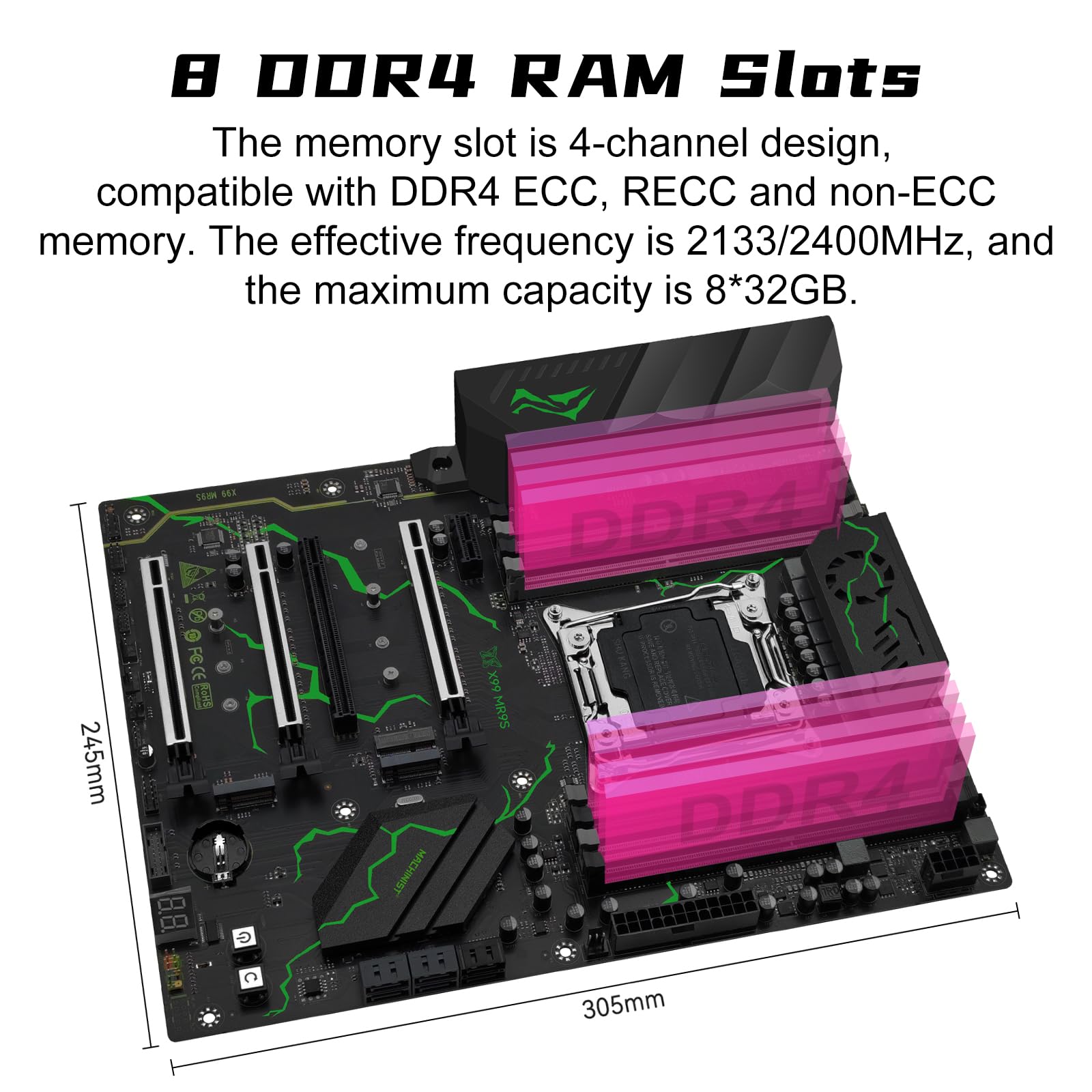

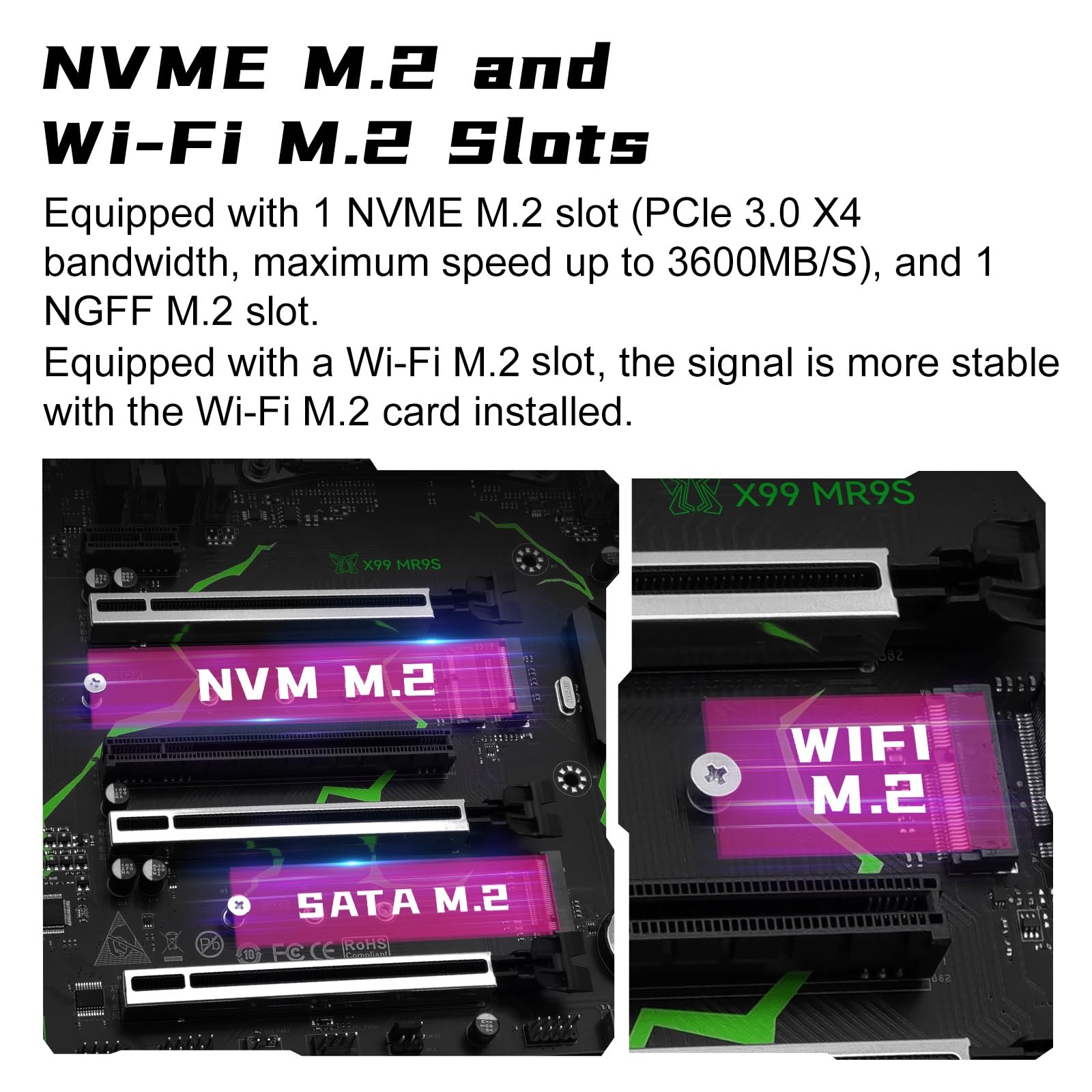

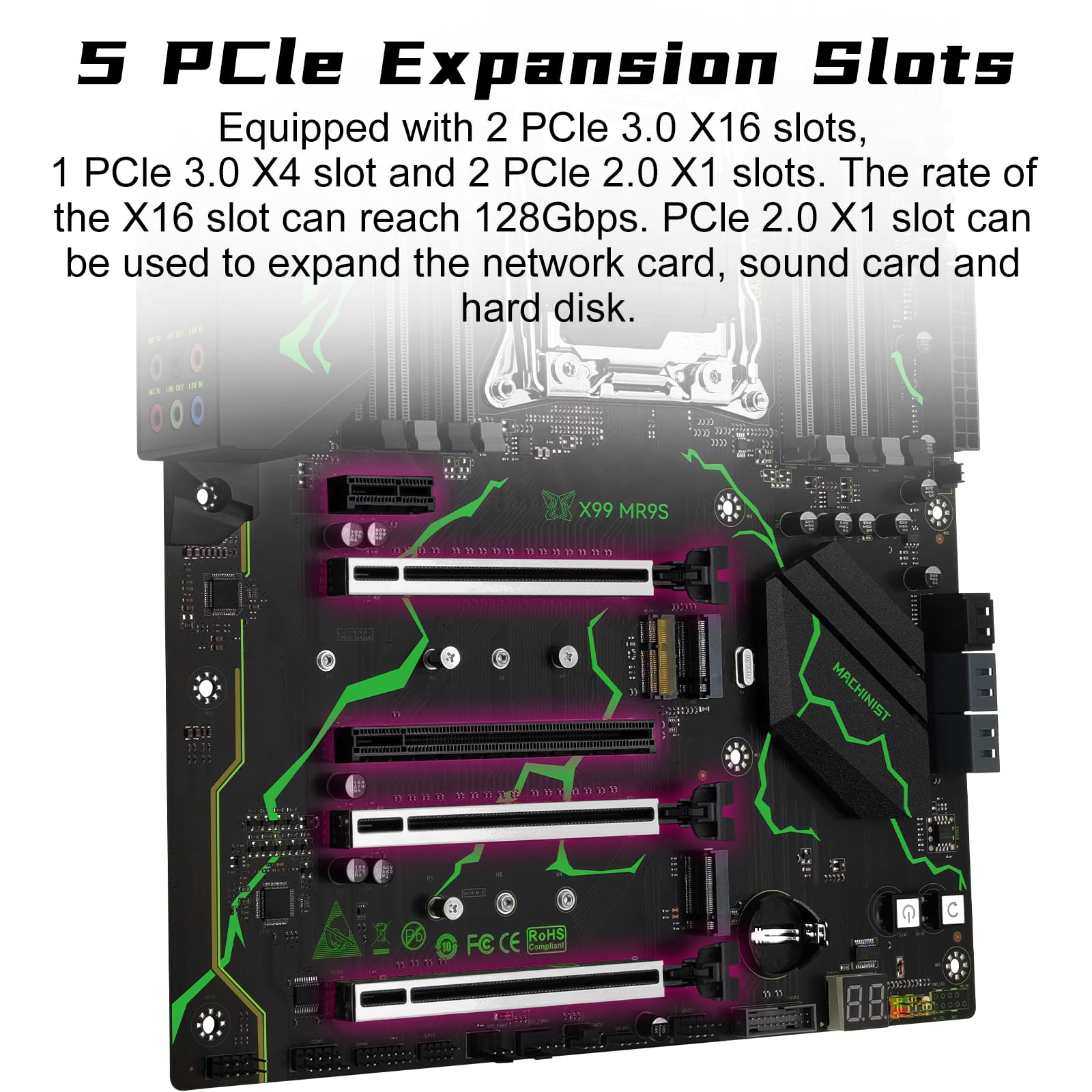

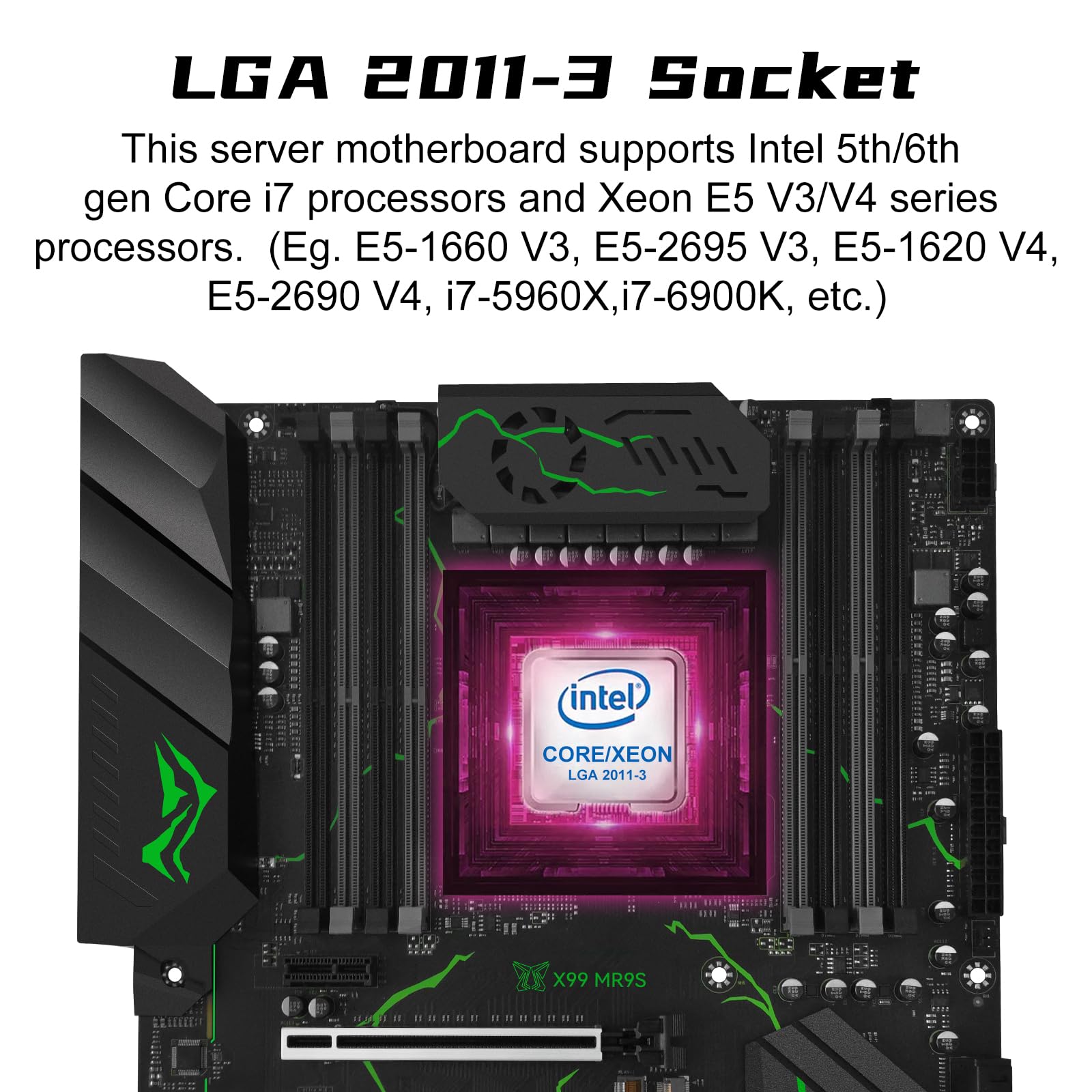

The MACHINIST LGA 2011-3 X99 motherboard is a high-performance ATX server board designed for Intel Xeon E5 V3/V4 and 5th/6th Gen Core i7 processors. Featuring 8 DDR4 slots supporting up to 256GB RAM, dual M.2 NVMe slots with PCIe 3.0 x4 bandwidth for ultra-fast storage, and 5 PCIe expansion slots, it delivers robust multitasking and expansion capabilities. Additional perks include one-key boot/restart, VRM cooling fan, and 7.1 channel audio, making it a versatile choice for demanding professional workloads.
| ASIN | B0CHMNY8PN |
| Are Batteries Included | Yes |
| Best Sellers Rank | #106,926 in Computers ( See Top 100 in Computers ) #1,045 in Motherboards |
| Brand | MACHINIST |
| Color | MR9S-Green+ATX |
| Computer Memory Type | DDR4 SDRAM |
| Connectivity Type | Wi-Fi |
| Customer Reviews | 3.7 3.7 out of 5 stars (150) |
| Date First Available | 9 October 2023 |
| Graphics Card Interface | PCI Express |
| Hard Drive Interface | Serial ATA-600 |
| Hardware Platform | PC |
| Item Weight | 1.44 Kilograms |
| Item model number | X99-MR9S |
| Lithium Battery Energy Content | 240 Milliampere Hour (mAh) |
| Lithium Battery Packaging | Batteries contained in equipment |
| Lithium Battery Weight | 2 Grams |
| Manufacturer | MACHINIST |
| Maximum Memory Supported | 256 GB |
| Memory Clock Speed | 2 GHz |
| Memory Technology | DDR4 |
| Number of Ethernet Ports | 1 |
| Number of USB 2.0 Ports | 6 |
| Operating System | Linux, Windows 10 |
| Power Source | DC |
| Processor Brand | Intel |
| Processor Socket | LGA 2011-V3 Socket |
| Processor Type | Core i7 |
| Product Dimensions | 19 x 21.5 x 4.2 cm; 1.44 kg |
| RAM Size | 256 GB |
| Series | E5-MR9S |
S**N
Drivers and support files are very limited. It's a cheaply made motherboard with poor support. MSI makes better x99 motherboards
B**D
I had to return the first mobo because the 1st pciex slot did not work and the Realtek sound controller did not get detected. Got another one, and it was worst! Not only did the first pciex slot still did not work either, but none of the nvme m.2 card got detected at all by the bios, meaning it could not boot from my perfectly fine m.2 nvme ssd... Really dissappointed with this product... I do NOT recommend this brand at all!
J**H
The vrm is 3 phase not four and should be check to make sure heat sink is mounted properly to vrm as well I'd stay to lower core count CPUs I found the vrm is a issue with larger CPUs as in no advantage of having 10 core or 14 core when hashing away so the vrm is definitely hindering the larger chips iv tested it with a few. CPUs and it. Lives with a 2680v4 in it now the max ram of 32gb was a surprise and not a welcome one but all in all I use this board for a ton of applications and games and it's never let us down 1070 2070 no bottlenecks
J**A
Placa de excelente construção, suporta facilmente um 2680 v4. Tem duas entradas ssd nvme!!
F**A
Installed it, found some scratch on CPU socket... Never worked...
