Question 1

Does this have a true gigabit connection? One review says it can only hit 500mbit of firewall traffic.

Accepted Answer

Don't ask an engineer, ask a marketing person. If you are an engineer, you know that "1 Gbps" is actually ~941 Mbps after you subtract headers/framing/etc so no, you won't ever truly see 1 Gbps on any 1Gb NIC. It will negotiate at 1 Gb and say it's passing traffic at 1 Gbps, but that's the difference between marketing and a small technical matter of networking overhead.

The marketing answer to your question is "it depends" - upon how many rules you have, what size packets you're moving, what additional packages you may have installed.  The more rules you have, the slower every packet filtering firewall goes that relies on in kernel based networking.  So the only way to find out how fast it will go is to test it. Fortunately, Netgate has tested these systems using a well defined, standard IMIX setup. Contact the Netgate sales group to discuss your throughput requirements or take a look at the blog post (june 2019) for details prior to purchasing on Amazon.

If you want true knock-your-socks-off speed, look at the Netgate TNSR, which leverages the FD.io VPP open source project and does not rely on in-kernel based network processing.

Question 2

Can I hook this up between my router and modem?

Accepted Answer

Yes you can.  This device is a router in its own right, and quite a good one, so I'm not sure why you would put it between another router and the network terminal adapter.

If you are building a DMZ for your network so that some services could live there and be accessible to the Internet and to your internal network while keeping your internal network inaccessible, such a connection scheme would make sense.  That's a pretty sophisticated approach for a home/small business network, however, and probably better addressed by using cloud providers like Google, Amazon, or Microsoft to provision the publicly-visible services.

Aside: maybe your device actually is a modem, but I'd be surprised in 2019 if that were the case ... anyway, 'terminal adapter' is the term of art that covers both modems and other network interface devices.

Question 3

Does the lan interface support vlan trunking to logically split lan and dmz networks?

Accepted Answer

Great question.   Yes!   All of the interfaces can do this.

Question 4

What is the nation of origin?   Where is the SG-1000 made?

Accepted Answer

At this time, the SG-1100 is being manufactured in China.  By December 2019, we expect to have transitioned manufacturing successfully to Taiwan.

ASIN	B07MTMPXKG
Antenna Location	Business, Home
Antenna Type	Internal
Best Sellers Rank	#84,655 in Computers ( See Top 100 in Computers ) #1,191 in Routers
Brand	Netgate
Built-In Media	1 Main body, 1 USB console cable
Color	White
Compatible Devices	Personal Computer
Compatible devices	Personal Computer
Connectivity Protocol	Ethernet
Connectivity Technology	['wired', 'Ethernet']
Control Method	App
Controller Type	Switch
Coverage	1 year hardware warranty
Customer Reviews	4.2 out of 5 stars 346 Reviews
Data Transfer Rate	940 Megabits Per Second
Frequency	1.2 GHz
Frequency Band Class	Single-Band
Frequency band class	Single-Band
Global Trade Identification Number	00858079003657
Has Internet Connectivity	Yes
Has Security Updates	Yes
Is Modem Compatible	No
Item Dimensions L x W x H	11L x 8.5W x 3.2H centimeters
Item Weight	454 g
LAN Port Bandwidth	1000 Mbps
Manufacturer	Netgate
Maximum Upstream Data Transfer Rate	333 Megabits Per Second
Mfr Part Number	Netgate SG-1100
Model Name	Netgate SG-1100
Model Number	SG-1100
Model name	Netgate SG-1100
Number of Ports	3
Operating System	FreeBSD
Other Special Features of the Product	WPS
RAM Memory Installed	1 GB
Router Firewall Security Level	Advanced
Router Network Type	wired
Security Protocol	WPS
Special features	WPS
UPC	858079003657
Unit Count	1 Count
Voltage	12 Volts
Wireless Compability	802.11b
Wireless communication standard	802.11b

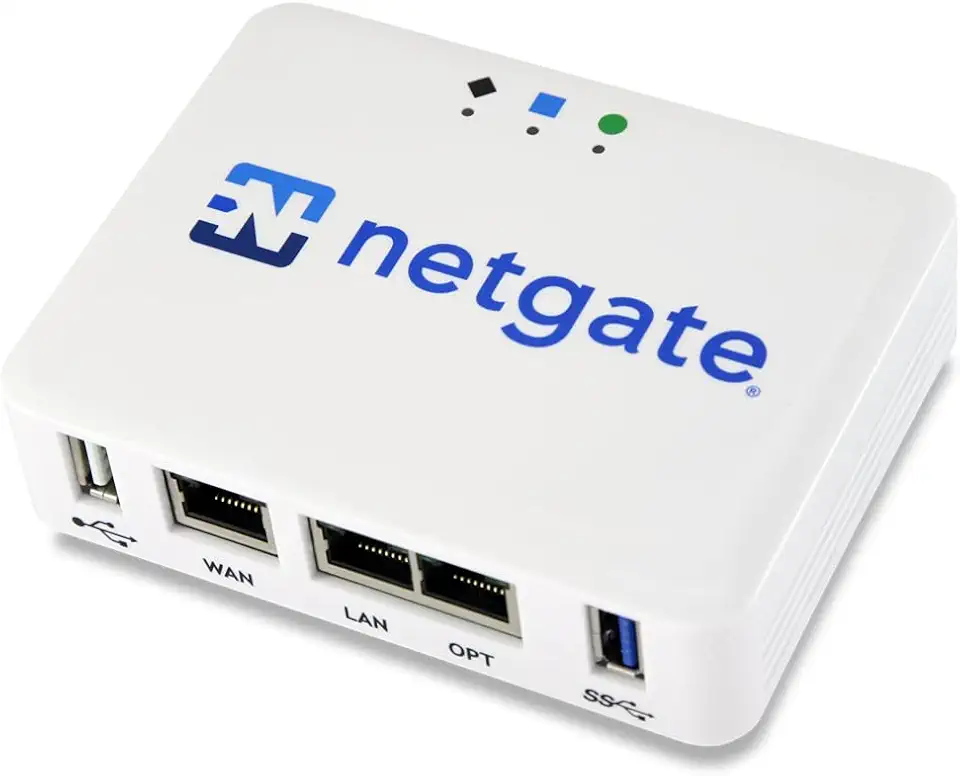

Netgate 1100 w/pfSense+ Software - Router, Firewall, VPN w/Lifetime TAC Lite Support
