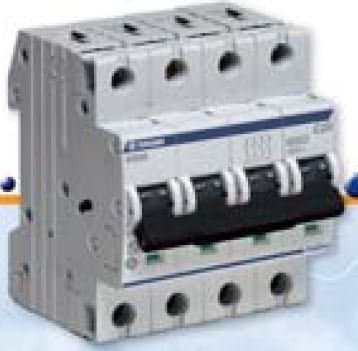

magneto-thermic Switch IV Pole C Curve 20 a

Description

The automatic switches are destined for the protection and manoeuvre of individual circuits against overloads and short circuits. Characteristics of disconnection of the switches MCB temdin2 correspond to the norm une 60898. Curve C Magnetic Shooting: between 5 and 10 in. Cutting power (in 6 kA 60898) tension of employment 230 V/400 V ~, 240 V/415 V ~ Frequency 50/60 Hz Temperature 30oC section conexionado 35 mm2 endurancia Electric 30,000 mechanical endurancia 40,000 symmetrical snap poles 4P DIN rail 35 mm (in 50022-din 46277) en 60898, en 60947 - 2 Une 20317
