What are the advantages of our 5pin 6 Gang Marine Ignition Toggle Rocker Switch Panel ?

❶Rocker switch panel and the slot waterproof hat, rubber sealed cap make it watertight

❷Two 5V USB ports are sufficient to meet power charge demand

❸Digital voltage display helps user to monitor machine electrical safety

❹Universally fit for both 12V and 24V vehicles, such as marine, boat, caravan, bus

❺Easily Installed by its pre-wired wiring harness

❻Can be DIY to control any vehicle electrical appliance

Specification:

Voltage: 12V-24V

Max Output Power: 240W

Overload protection: 12V 20A DC; 24V 10A DC

Operating Temperature: -25 degree to 80 degree

Certificate: CE Approved

LED Color: Blue

Fuse: 1.5A

Product type: Marine Boat Car DIY Modify Switch Panel

Function: With Fuse, 12V Power Voltmeter and USB Socket

3-bit Digital Voltmeter Disply:

Help user pay attention to the voltage situation, ensure the Equipment Safety

Rocker Switch:

Loop Circuit: ON-OFF

Maximum power: 240W

Input voltage: DC12/ 24V

Dual USB Port:

-Working voltage:12-24V

-Output current:3.1A

-Output voltage:5V

Wiring instruction:

●The red and blue wire---Connect to the cathode of the storage battery

●The black and yellow wire---Connect to the anode of the storage battery

Effortless to install: Pre-wired needed wiring kit for Simple Flush Mount and Breeze Installation, black to ground and red to hot wire (Hint: connect the voltmeter located wire to a separate toggle switch in case of drained battery)

Package Included:

●1x Switch Pane

●1x Wiring Diagram

●1*Stainless Steel Screws(6 pieces )

●No Include gasket and label

Manufacturer	Genuine Marine
Part number	Aluminium 6 gang
Item Weight	400 g
Product Dimensions	18.29 x 11.99 x 7.49 cm; 400 g
Item model number	GM-EP-S0038
Size	6 Gang
Colour	S0038
Style	6 gang S0038
Shape	6 Gang
Voltage	12 Volts
Wattage	240 watts
Item Package Quantity	1
Switch Type	6-way
Special Features	Effortless to install: Pre-wired needed wiring kit for Simple Flush Mount and Breeze Installation, black to ground and red to hot wire (Hint: connect the voltmeter located wire to a separate toggle switch in case of drained battery)
Included components	screws
Batteries included?	No
Batteries Required?	No

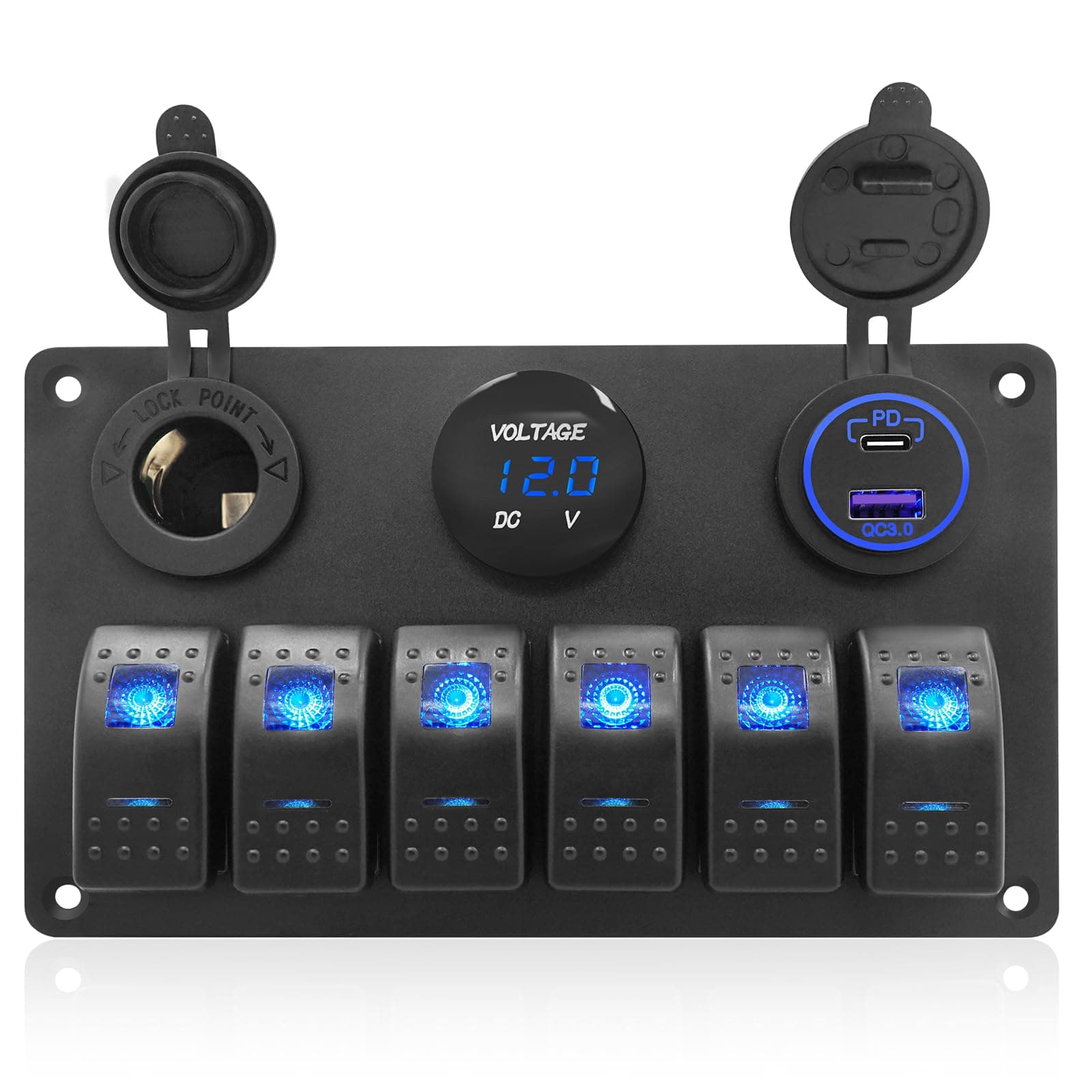

Marine Boat Blue Rocker Switch Panel 6 Position 12 Volt Socket+ Dual USB Charger (2.1A+1A)+ Digital Voltage Display Meter Water-Resistant Aluminum Plate with 6 Gang Control On Off Switches
